Noise Can't Hide Weak Signals From This New Receiver

San Diego, Calif., Dec. 11, 2015 — Electrical engineers at the University of California, San Diego developed a receiver that can detect a weak, fast, randomly occurring signal. The study, published in the Dec. 11 issue of Science, lays the groundwork for a new class of highly sensitive communication receivers and scientific instruments that can extract faint, non-repetitive signals from noise. The advance has applications in secure communication, electronic warfare, signal intelligence, remote sensing, astronomy and spectroscopy.

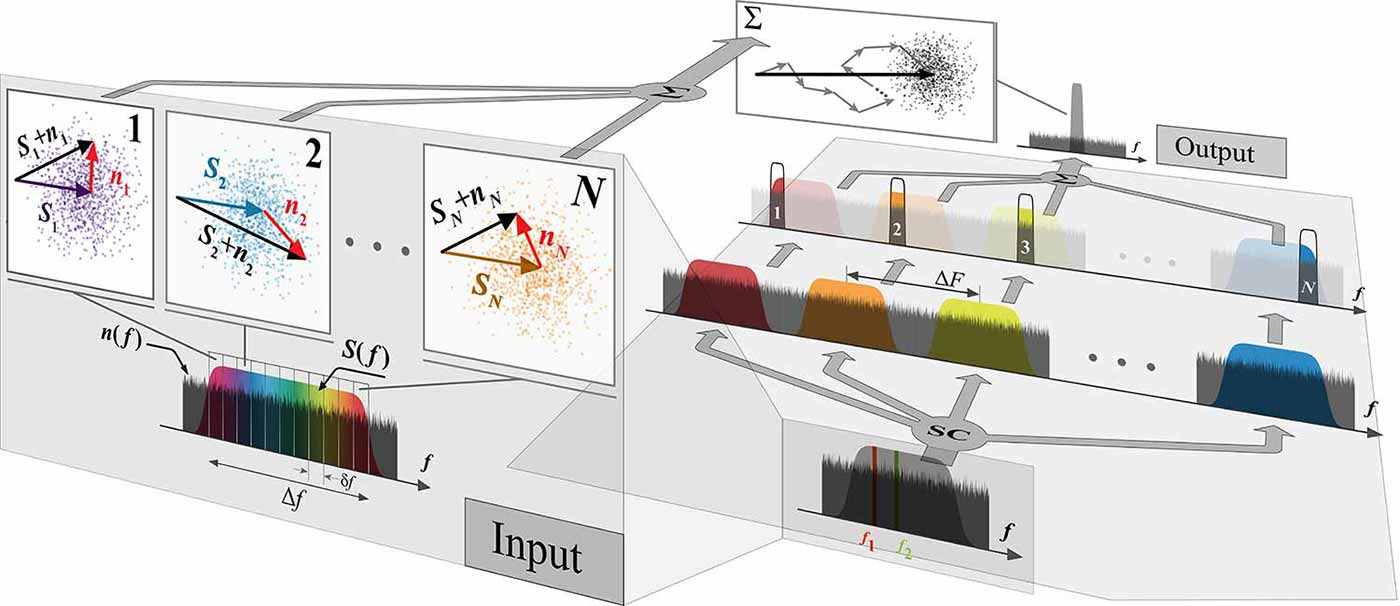

Schematic of single-event noise discrimination using the spectral cloning receiver. Image credit: Photonics Systems Group at UC San Diego.
Schematic of single-event noise discrimination using the spectral cloning receiver. Image credit: Photonics Systems Group at UC San Diego.

The research is motivated by a long-standing need to capture random, singly-occurring phenomena in nature and in communications. An example of these includes the spontaneous decay of a molecule, an event that emits a single noisy signal and therefore eludes detection by conventional methods. Because a standard detector must repeat measurements of the event multiple times to confirm its existence, it prevents, in principle, the capture of a random, non-repetitive event. Another limitation is that the capture of a fast event requires an equally fast detector.

To overcome the limitations of conventional detection methods, UC San Diego researchers developed a spectral-cloning receiver that works by replicating the received noisy signal to generate multiple spectral (colored) copies, and then combines these copies to reveal the existence of the signal within the noise.

“With the new receiver, it is now possible, at least in principle, to capture an ephemeral, non-repeating signal and observe fast, sparsely occurring natural or artificial phenomena—that would otherwise be invisible to us—over a long period of time, using a slow detector,” said Stojan Radic, the senior author of the study, an electrical engineering professor in the Jacobs School of Engineering at UC San Diego and an affiliate of the Qualcomm Institute (the UC San Diego division of the California Institute for Telecommunications and Information Technology).

In the Science paper, researchers report that the spectral-cloning receiver they developed “can potentially intercept communication signals that are presently considered secure.” These signals are based on singly-occurring bursts, which disappear before another measurement can be taken to separate noise.

Radic also noted that the receiver could enable communication at a longer distance and with higher security. For example, it would be possible to bury the communication channel in noise and still detect it using the new receiver, while being well below the sensitivity threshold of conventional detectors.

The new receiver physics can be compared to a “temporal microscope”: it can see a very fast, faint signal while observing over a much larger time interval. However, while an ordinary microscope cannot eliminate surrounding image noise, the new receiver can differentiate between the noise and the signal fields.

In their experiments, the team used a new class of tunable optical frequency combs—developed in Radic’s Photonics Systems Group at UC San Diego—to simultaneously create multiple spectral clones of a fast pulse. Researchers combined these clones to extract the signal from the noise and were able to reconstruct its timing and shape. They found that a higher spectral clone count resulted in higher sensitivity of signal detection by the spectral-cloning receiver.

“We were surprised that this concept could be scaled up to a high number of spectral copies. We are now able to construct a receiver that operates on hundreds of freely tunable copies,” said Radic. “This work is a result of long-standing research on tunable frequency combs at UC San Diego. The new class of combs are nearly noise-free and, in contrast to conventional frequency combs, can be freely tuned over a wide spectral range.”

Full paper: “Subnoise detection of a fast random event,” by V. Ataie, D. Esman, B. P.-P. Kuo, N. Alic, and S. Radic. The paper is published in the Dec. 11, 2015 issue of Science.

The work is funded in part by the Defense Advanced Research Projects Agency (DARPA). The University of California has filed a patent on the method and applications of random signal detection and coherent analysis.
